SMT贴标设备

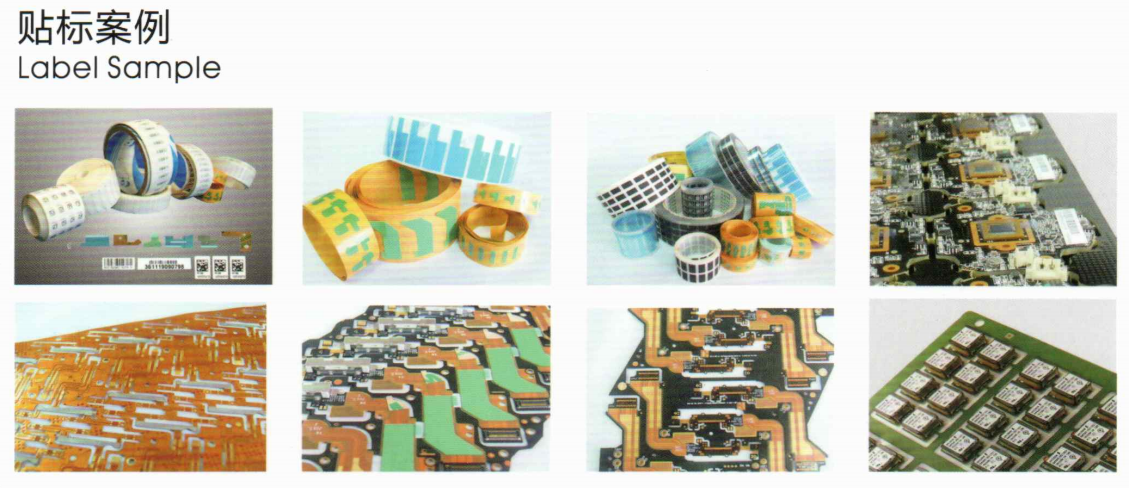

适用于SMT行业所有需要贴标签、背胶、的线路板和柔性线路板;

Applicable to the SMT industry all need to be label, Gum of PCB 'A and FPC;

大幅减少操作人员贴标错误率。

Reduce operating personnel labeling error rate.

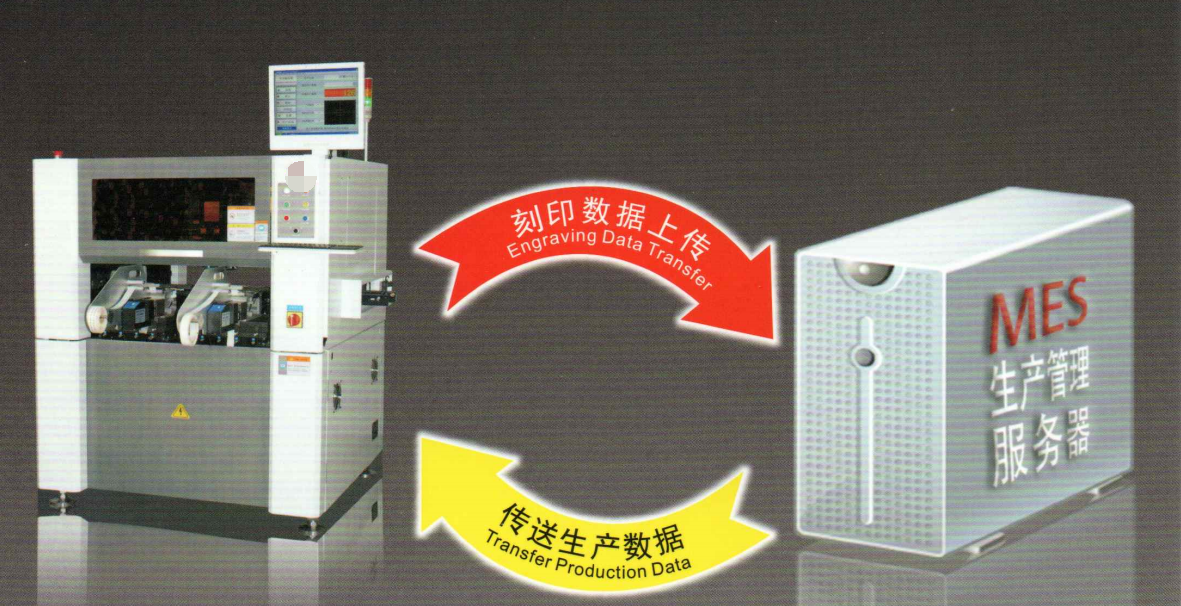

贴标与读取同时进行可与MES/TMS and Shopflow连接可对生产实时追溯

Labeling and read at the same time, can be connected to the MES/TMS and Shopflow, real-time tracing forproduction

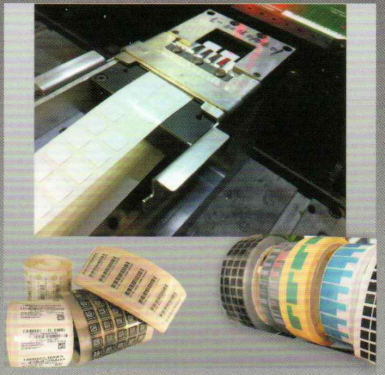

电子式的标签供料器由光钎和马达控制，精准送料方式和模组式，设计操作简单,更换容易。可根据客户要求制定各种规格的标签送料器。

Electronic Label Feeder control by the fiber-optic and motor,

precision feeding methods and modular design,simple operation,easy replacement,According to customer require ments to developall kinds of label feeder.

特点Features

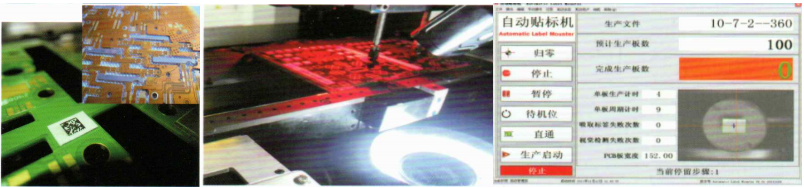

全视觉定位贴装系统,能校正标签,线路板Fiducial Mark的X、Y和R方向的误差。

Can all visual positioning mount system, calibration label, PCBFiducial Mark deviation in the direction of X , Y and R.

高速拍照,分析图像,判断出偏移量,PC将该值补偿至运动轴的运算中,达到提高精度目的

High-speed photograph,image analysis, determine the offset,the PC to the axes of the value compensation arithmetic, thepurpose of improving precision

双头设计,高钢性底座和铸造支架,更稳定,更灵活贴标

Dual Heads design High rigid base and casting stents, morestable, more flexible labeling

稳定可靠的工业控制系统,简易的Windows操作系统平台,更容易设定机器的操作程序

Industrial control system is stable and reliable, simple and easyWindows operating system Platform, it is easier to set the

operating procedure of the machine
