NPM/CM飞达放置车MTKA011192AA 料架储存车KXFX037PA00 KXFX038PA00

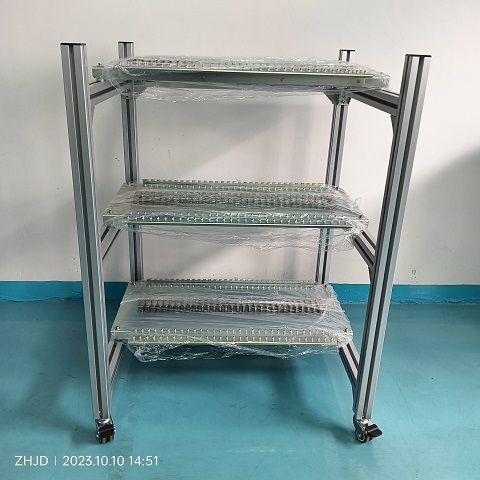

KXFX037PA00 飞达储存车一层可放30支飞达

材质:铝型材组装而成外形尺寸: 800mm*700mm*1070mm，不含脚轮存放数量:一层30站位，共3层，可存放8mm飞达90支重量:约50公斤

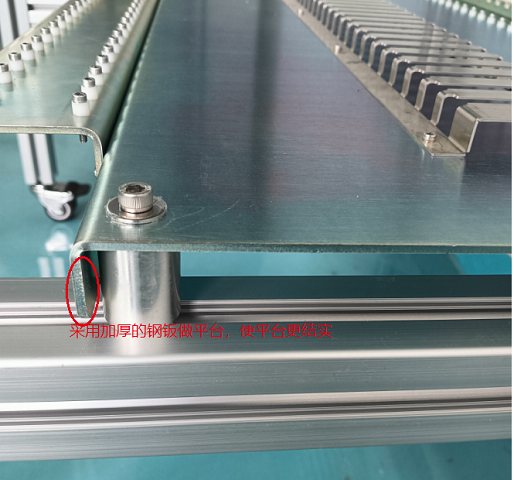

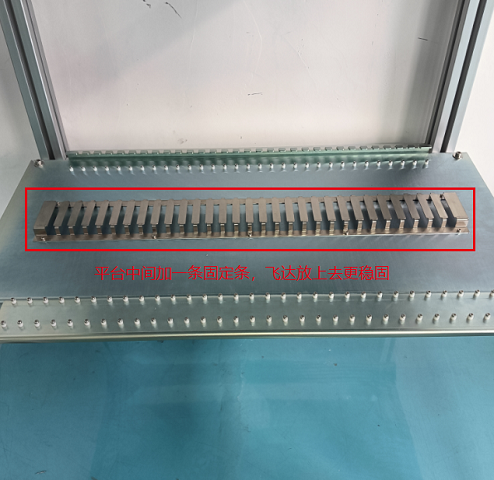

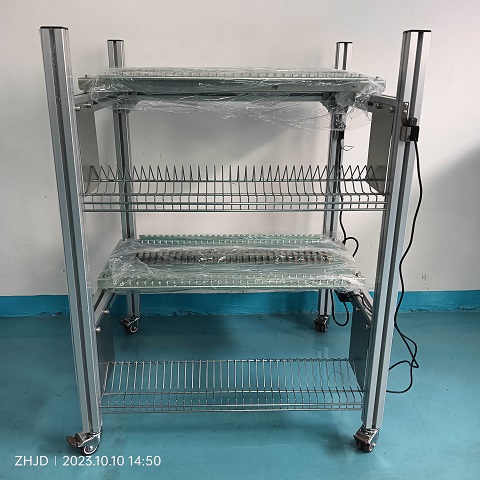

这飞达储存车是用于储存松下CM系列和NPM的飞达，三层的设计，每一层可安放三十支8mm飞达,总共可安放九十支8mm飞达整台车由国际标准 4545铝型材料和加厚合金钢板组成,平台增加固定条，坚固耐用.另外可选配增加安装电源和物料架，便可以升级为物料备料车以便生产线可提前把物料安装在飞达上，缩短转线时间，提高生产的效率.

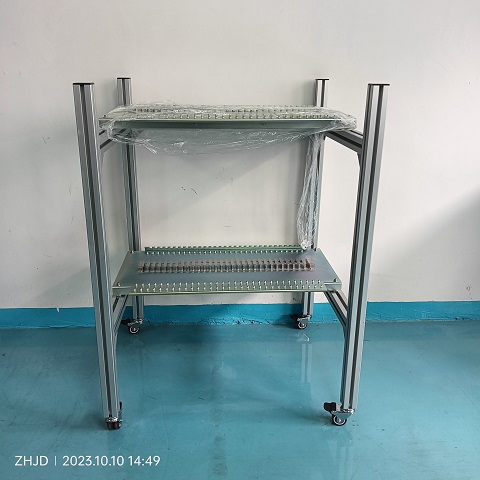

备注:电源和物料架是选配物件.加装了电源及物料架的飞达备料车,是两层的设计，总共可安放六十支8mm飞达

KXFB02N4A03 STOPPER 2

2 N210022685AA BLOCK 2

3 KXFB02N6A00 PLATE 2

4 KXFB02N7C01 PLATE 1

5 KXFB02N8A00 SPACER 1

6 N210022686AA SPACER 1

7 KXFB02NBB00 CYL-PLATE 1

8 KXFB02NCA00 PLATE 1

9 KXFB02TYA00 BRACKET 2

10 KXFB02NEA00 PLATE 1

11 KXFB02TZC00 BRACKET 1

12 KXFB02NAA00 D-PIN 2

13 KXF0C72AA00 SPRING 6580 1

14 KXF0DHZAA00 CYLINDER CU20S-T1879-15(DDA) 1

15 KXF00YSAA00 SPEED-CONTROLLER AS1211F-M5-04 2

16 KXF0DSTAA00 SENSOR E3S-LS3N(DA 0DSTA) 4

17 KXF0303AA00 PIN MSTH6-30 2

18 KXF02Y8AA00 PIN MS4-20 2

19 KXF0BL0AA00 PIN STEHN5.5 1

20 KXF0DZBAA00 CYLINDER CJPB15-DCG8017G-15(DDA) 1

21 KXF0CWKAA00 SPRING H063-10 1

22 KXF0DJJAA00 WASHER WSSB10-4-2 2

23 KXF0CJHAA00 WASHER WSSB10-6-2 2

25 N510017361AA BOLT Hexagon socket head cap screw M4X30-10.9 A2J (Trivalent) 2

26 KXF0DSUAA00 SENSOR E3S-LS3N(DA 0DSUA)
